OPTICS, Scopes

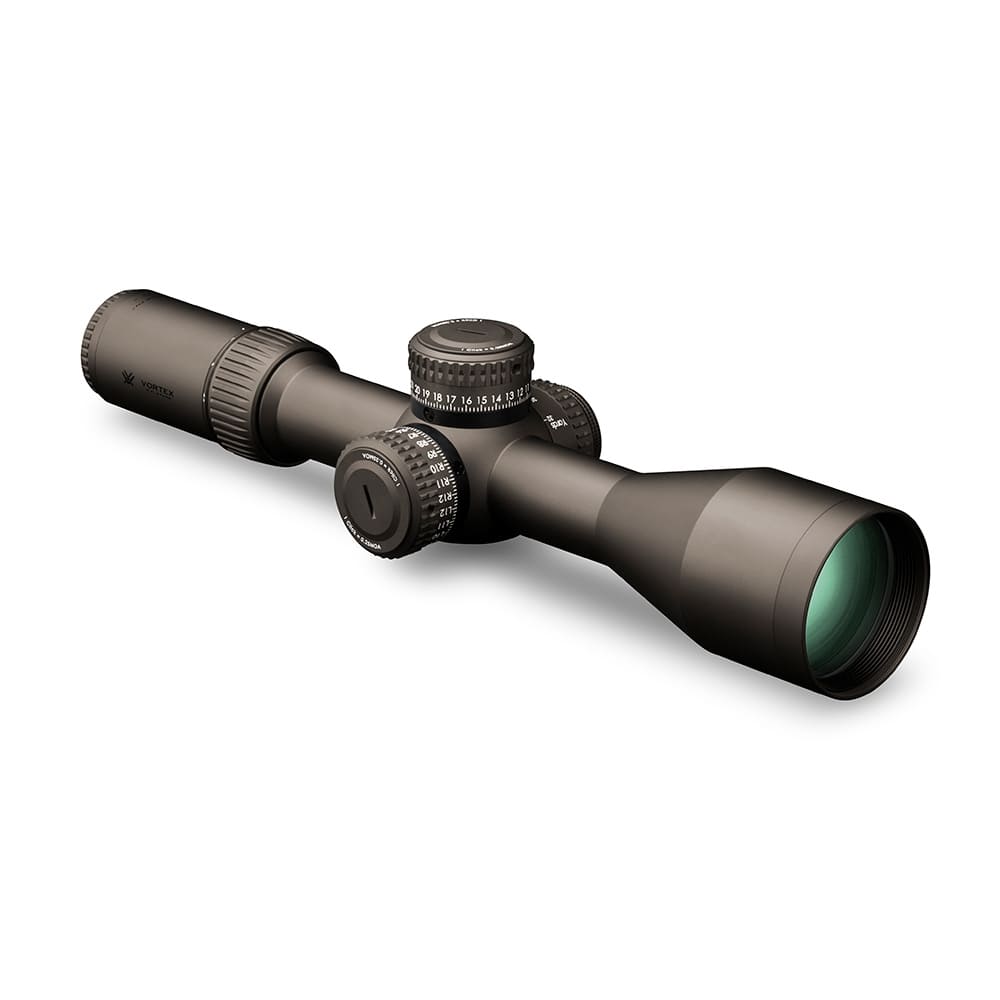

Vortex Razor HD Gen II 4.5-27×56 FFP EBR-7C MOA
Vortex |
Razor HD Gen II 4.5-27x56 FFP EBR-7C MOA |
RZR-42707 |
Availability:
Out of stock
$3,749.99
Out of stock
This product is currently sold out.
Don't worry! Enter your email and we'll notify you when it's available again.
| SKU | VT-RZR-42707 |
|---|---|
| Magnification | 4.5–27 |
| Objective Lens Diameter | 56 mm |
| Eye Relief | 3.7 inches |
| Field of View | 25.3–4.4 feet/100 yards |
| Tube Size | 34 mm |
| Turret Style | L-Tec |
| Adjustment Graduation | 1/4 MOA |
| Travel per Rotation | 25 MOA |
| Max Elevation Adjustment | 113.5 MOA total (71 MOA w/ L-TEC zero stop engaged) |
| Max Windage Adjustment | 48 MOA total (34 MOA w/ L-TEC zero stop engaged) |
| Parallax Setting | 32 yards to infinity |
| Length | 14.4 inches |
| Weight | 48.5 ounces |
| Riflescope Manual (.pdf) | Download PDF |

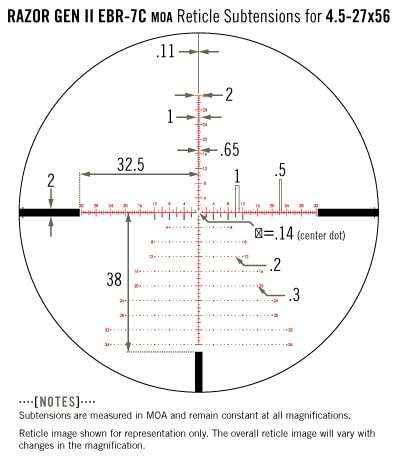

| Reticle Manual (.pdf) | Download PDF |
- L-Tec Tool
- 4-inch sunshade
- 2 mm hex wrench
- CR2032 battery
- Lens cloth
| Lengths | |||||
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14.4 | 1.96 | 2.17 | 6.11 | 4.13 | 4.1 |
| Heights | |
| H1 | H2 |
| 2.55 | 1.81 |
Dimensions measured in inches.
Optical Features |
|
| APO System | Apochromatic objective lens system uses index-matched lenses to correct colour across the entire visual spectrum. |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| HD Lens Elements | Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and colour fidelity, resulting in High Definition images. |
| XRPlus Fully Multi-Coated | Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness. |
| Plasma Tech | Cuttting edge application process provides unparalleled coating durability and performance. |

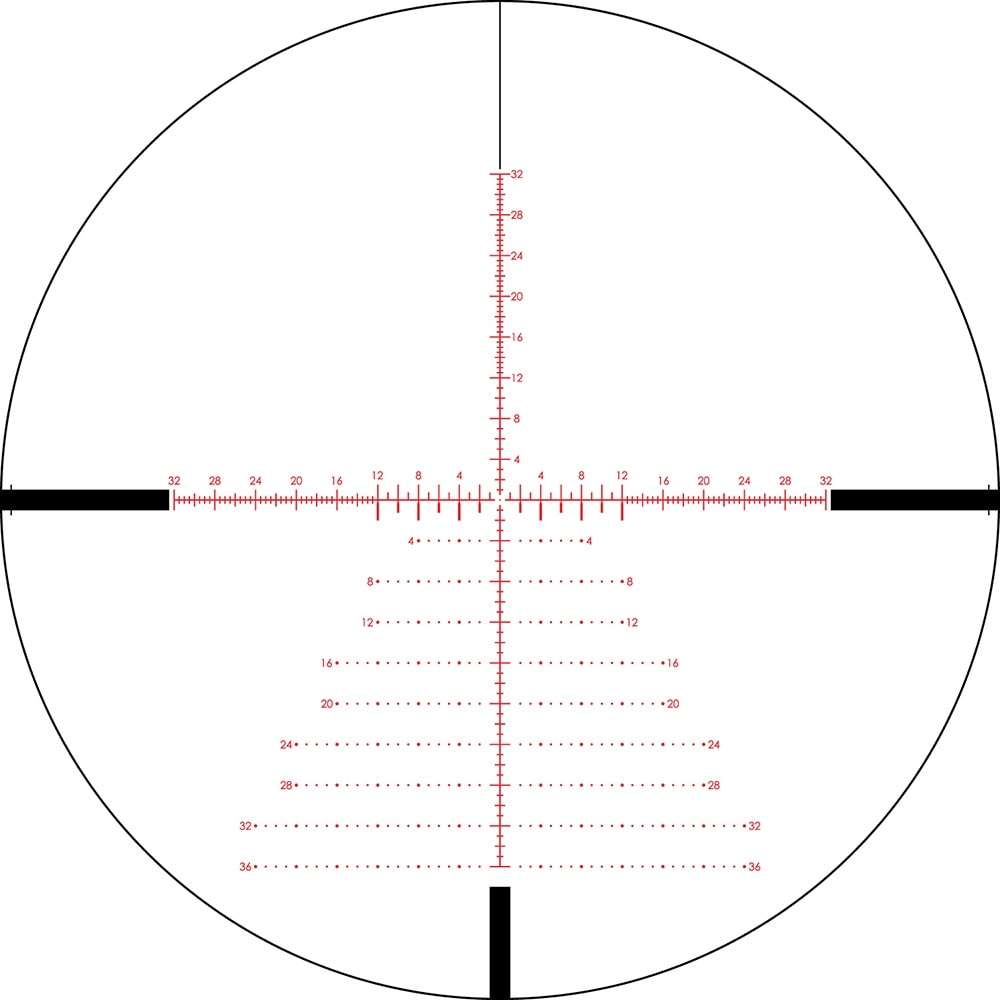

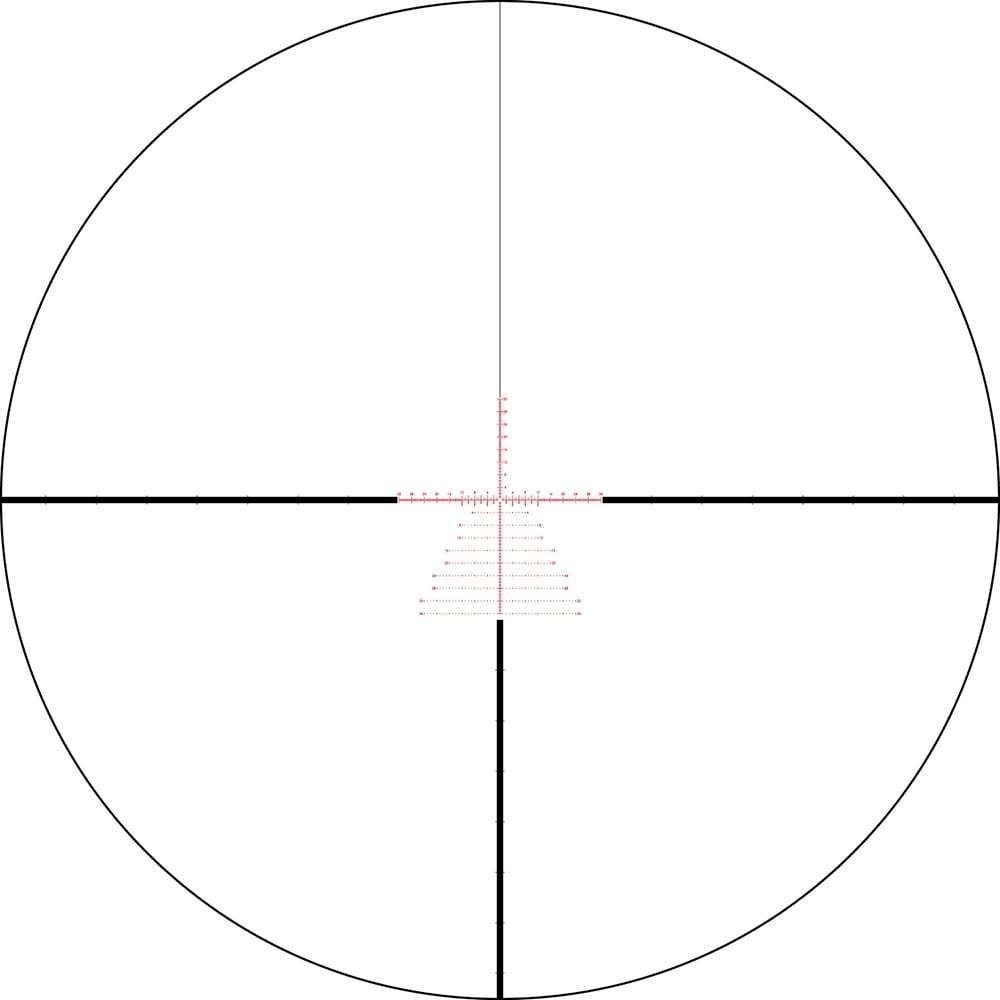

| First Focal Plane Reticle | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
| Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
| Illuminated Reticle | Provides precise aiming under low-light conditions. |
Construction Features |
|
| Tube Size | 30 mm diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter’s position. |
| ArmorTek | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| L-Tec™ Turrets | Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. Patent pending. |
| External Rotation Indicator | Provides quick visual and tactile reference of elevation turret’s rotational position. |
| Locking Illumination | Locks illumination at preferred setting. |
| Side Focus | Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal. |
Internal Mechanism Design Features |
|
| L-Tec™ Zero Stop | Prevents elevation turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials—even when setting the zero-stop position. |
| Maximized Turret Zero Adjustment | Turret design allows expanded adjustment range when L-Tec zero stop feature is disengaged for zeroing purposes. |
| Micro Adjust Zero Setting | Infinite zero setting positions allow zero to be set between clicks for optimal accuracy. |
| Friction Reduction System | PHeat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability. |
| Turret Screws | Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). |
| Erector Tube System | Precision-machined from aircraft grade aluminum with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs. |
Convenience Features |
|
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| L-Tec™ Tool | Included with your scope for precise adjustments to the turret. |
| Locking Side Illumination | Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting. |
| Weight | 2.5 kg |
|---|---|
| Dimensions | 45 × 35 × 20 cm |
